LB-RC Post-Consumer Recycled Cross-Linked Shrink Film

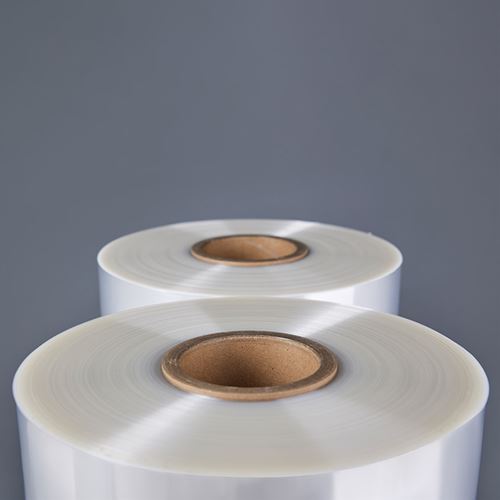

LB-RC a kind of cross-linked polyolefin shrink film contains 30% of post consumer recycled  raw material.

In addition of using plenty of PCR returns, this film applies unique production process, resin formulation including crosslink process, to allow basically same properties and application as LB-C. It also has the advantages of good mechanical properties, good heat sealing, high shrinkage, and good adaptability to various packaging machines.

LB-RC meets various performance demands from customers, but reduce the usage of virgin raw materials to contributes our earth environment. This film passed the GRS4.0 certification (global recycling standard certification)


Thickness15um、19um、25um、30um

Technical Index
TEST ITEMUNITASTM TESTTYPICAL VALUES
INTRODUCTION
Post Consumer Recycling

30% Recycled post-consumer polyethylene(RM0193)
Gauge

15um19um25um30um
TENSILE STRENGTH
Tensile Strength (MD)N/mm²D882130125120115
Tensile Strength (TD)115110108110
ELONGATION
Elongation(MD)%D882125115125120
Elongation (TD)110110110100
TEAR
MD at 400gmgfD192211.514.316.721.5
TD at 400gm9.814.817.223.4
SEAL STRENGTH
MD\Hot Wire SealN/mmF881.201.401.551.96
TD\Hot Wire Seal1.401.551.652.05
COF (Film To Film)
Static
D18940.200.180.230.23
Dynamic
0.200.180.230.23
OPTICS
Haze
D10033.23.64.04.5
Clarity
D174692.591.590.590.0
Gloss @ 45Deg
D245785.084.082.081.0
BARRIER
Oxygen Transmission Ratecc/㎡/dayD39858800750051003900
Water Vapor Transmission Rategm/㎡/dayF124923.519.411.69.2
SHRINKAGE PROPERTIESMDTDMDTD
Free Shrinkage 100℃%D273214.022.513.022.0
110℃36.545.033.044.5
120℃73.071.570.570.0
130℃81.080.081.080.0

MDMDTDTD
Shrink Tension100℃MpaD28382.052.351.702.25
110℃2.753.652.653.45
120℃3.154.052.953.65
130℃3.003.652.753.20
Note: The above information is based on our internal evaluation data and is for reference only.
